Design · construction supervision · municipal benchmarks

Field & Code Bridge

Municipal safety benchmarks in one calm surface—built to align what drawings intend with what supervision can verify on site.

Weighted scoring across disciplines, tuned for coordination—not cosmetic dashboards.
Illustrative defaults; swap targets for your adopted code and amendments.

The gap

Design criteria drift from verified field reality.

Teams lose alignment when benchmarks live in spreadsheets, email threads, and static slide decks that never reconnect to inspection notes or RFIs.

Supervisor reviewing a digital twin of a civic landmark on a tablet—field data disconnected from static benchmarks

Without a bridge

Targets implied on sheets; field teams chase fragments of proof; critical gaps surface late.

With Field & Code Bridge

One shared vocabulary—targets, weights, field percentages, notes—updated while teams are already in the meeting.

Field supervisor using a tablet interface to align live observations with municipal safety benchmarks

What this is

A lightweight HTML framework—not a substitute for judgment.

Adjust benchmark scores and watch compliance posture shift in real time. Purpose-built for coordination meetings, inspection prep, and jurisdictional checklists.

Capture design intent beside field verification for whichever row is selected.
Promotes disciplined dialogue between drawings, specs, and site documentation.
Always confirm outcomes against licensed interpretation of your adopted code.

Live demo

Application in use

The interactive framework surfaces weighted compliance, discipline radar, design-intent notes, and row-level benchmarks—ready for coordination meetings with illustrative demo data.

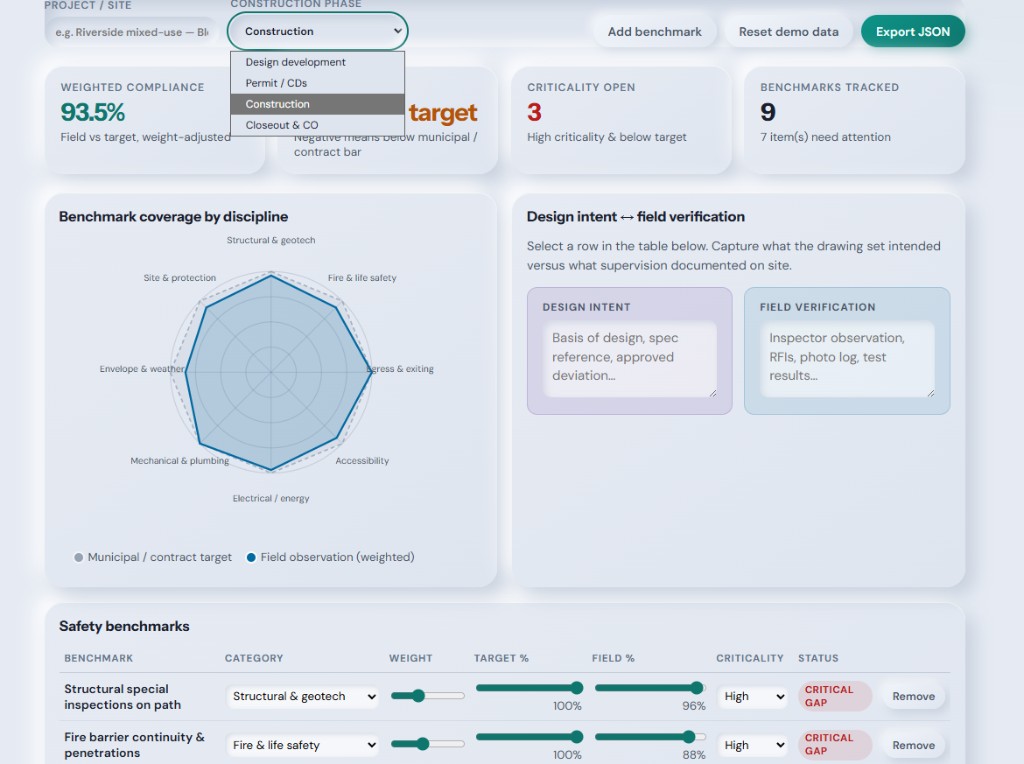

Municipal Safety Benchmark dashboard demo showing KPI strip, discipline radar chart, design intent and field verification panels, and safety benchmarks table with construction phase set to Construction — Illustrative demo · Riverside mixed-use sample · Export JSON & local persistence

Open the working tool: municipal-safety-benchmark-framework.html

Core metaphor

Design intent ↔ field verification

Violet lane for basis-of-design thinking; royal blue lane for supervisor-ready proof. Together they close the loop municipal reviewers expect.

Wireframe digital twin of a civic landmark—design documentation mapped to measurable field checkpoints

Design intent

Basis of design, spec references, approved deviations—everything traceable back to signed documents.

Field verification

Inspector observations, RFIs, photo logs, and test sheets—the evidentiary trail supervision actually holds.

Lifecycle

Phase-aware context

Switch construction phase so conversations stay anchored—different gates matter at DD than at certificate of occupancy.

Design development

Stress-test checklist breadth against concept-level risks before documentation hardens.

Permit / CDs

Align municipal targets with drawing schedules and deferred approvals.

Construction

Drive weighted compliance from observed percentages—not aspirational placeholders.

Closeout & CO

Close critical gaps before life-safety sign-offs and owner training handover.

Benchmark anatomy

Weights, targets, and criticality

Each benchmark carries an explicit weight, municipal or contract target percentage, observed field percentage, and criticality tier—feeding aggregate KPI math from the interactive tool.

Weighted gap vs target Status: On track · Watch · Behind · Critical gap Critical gap when high criticality & below target Negative gap signals below municipal / contract bar

Coverage

Eight discipline clusters

Radar grouping mirrors the benchmark framework—rename categories to reflect your jurisdiction without breaking the visualization logic.

Digital twin mesh over a civic complex—discipline-weighted safety coverage across public assembly assets

Structural & geotech Fire & life safety Egress & exiting Accessibility Electrical / energy Mechanical & plumbing Envelope & weather Site & protection

Signals

Executive KPI strip

Four headline tiles summarize portfolio posture exactly like the living dashboard—ideal for opening or closing a governance forum.

Municipal leader reviewing live compliance dashboards in a command-center environment

Weighted compliance Field vs target, weight-adjusted %

Net gap Points above / below municipal bar

Criticality open High criticality items below target

Benchmarks tracked Count & attention queue depth

Visualization

Radar parity

Municipal contract polygon overlays weighted field observations—mirroring the SVG radar rendered inside the interactive HTML framework.

Municipal / contract target Field observation (weighted)

Tablet-based field observation overlaying municipal target geometry

Demo posture

Illustrative benchmarks from the toolkit

Representative rows bundled with the framework—swap names, weights, and percentages for your project controls ledger.

Official reviewing benchmark status against live municipal data feeds

Benchmark	Category	Target → Field	Status
Fire barrier continuity & penetrations	Fire & life safety	100% → 88%	Behind target
Fall protection & railing loads	Envelope & weather	100% → 85%	Critical gap
Structural special inspections on path	Structural & geotech	100% → 96%	Watch

Secure command-center review—local datasets and exports without brittle cloud approvals

Operations

Privacy-first mechanics

Dataset persists locally until cleared—mirror how the companion HTML behaves for municipal stakeholders who cannot adopt brittle SaaS approvals overnight.

Browser localStorage retains benchmarks between sessions.
Export digital files for governance archives or BIM coordination bridges.
Reset restores curated demo benchmarks for training workshops.

Closing

Professional clarity over novelty.

Replace category labels and targets with your jurisdiction’s checklist, fire marshal directives, and owner risk appetite. This narrative—and the underlying tool—never replaces licensed professionals interpreting code.

Open the interactive framework for sliders, radar redraws, and paired notes: municipal-safety-benchmark-framework.html

Field-ready interface closing the loop between municipal targets and on-site verification
